Grade 50W800

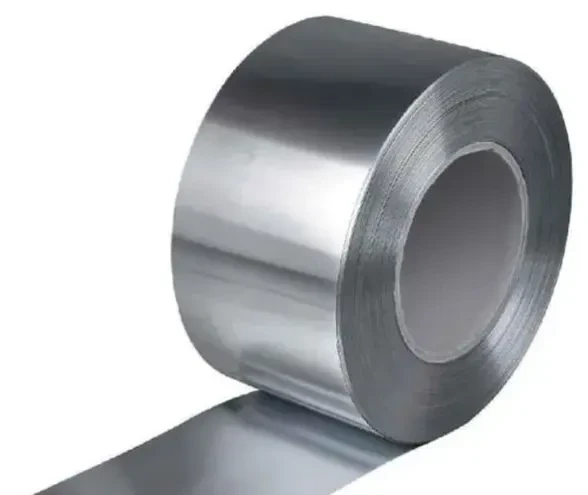

50W800 Non-Oriented Electrical Steel
A general-purpose fully processed grade for small and medium motors, fans and pumps where economical core loss is the main requirement.
Thickness 0.50 mmView details
Electrical steel grades for motors and transformers
Non-Oriented
Non-Oriented Electrical Steel
Non-oriented electrical steel has uniform magnetic properties in every direction of the sheet, which suits rotating equipment where flux paths turn through the lamination. Grades are selected by core loss and induction according to the efficiency class and operating frequency of the machine.
Typical applications
- AC and DC motors
- Fans, pumps and compressors
- Automotive and EV traction motors
- Small transformers and reactors
- Home appliance motors
Grade 50W600

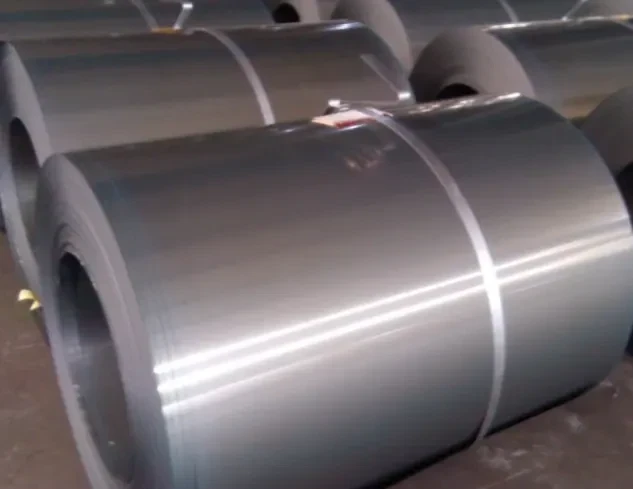

50W600 Non-Oriented Electrical Steel
A lower-loss step up from the standard grade for medium motors and compressors that need better efficiency at the same stack height.
Thickness 0.50 mmView details

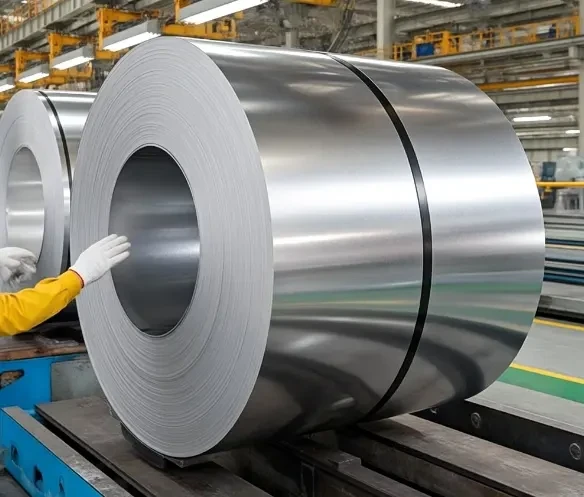

Grade 50W470
50W470 Non-Oriented Electrical Steel
A high-grade non-oriented steel for high-efficiency motors and generators where low loss at higher induction is required.
Thickness 0.50 mmView details

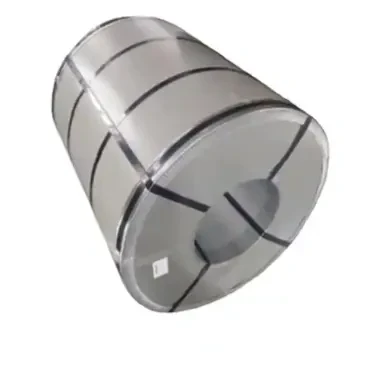

Grade 25W230
25W230 Non-Oriented Electrical Steel
A thin-gauge, low-loss grade for high-speed and high-frequency machines where eddy current loss has to be kept low.
Thickness 0.25 mmView details

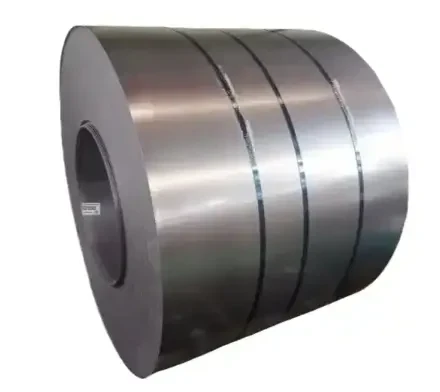

Grade 65W600
65W600 Non-Oriented Electrical Steel
A 0.65 mm general-purpose grade for medium motors, compressors and pumps where a thicker lamination suits the existing stack and tooling.
Thickness 0.65 mmView details
Grade 35W300

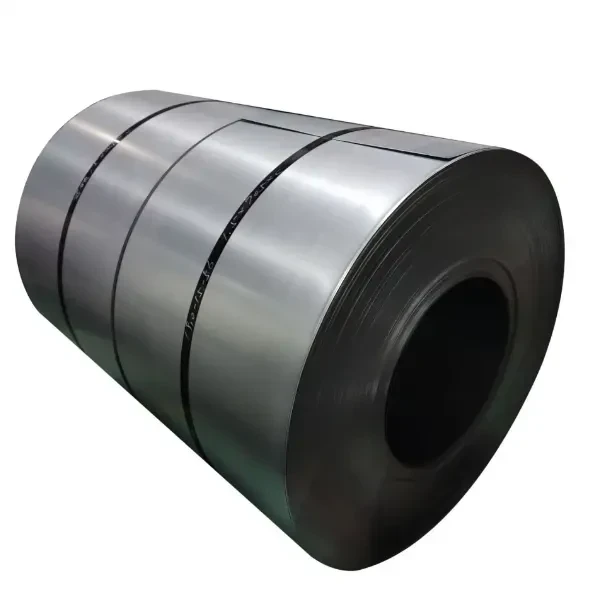

35W300 Non-Oriented Electrical Steel
A thinner gauge for high-speed motors and generators, where eddy current loss rises with operating frequency.
Thickness 0.35 mmView details
Grain-Oriented
Grain-Oriented Electrical Steel
Grain-oriented electrical steel is produced with a strongly preferred crystal orientation along the rolling direction, giving low core loss and high permeability in that direction. It is used for wound and stacked cores where the flux path follows the rolling direction.
Typical applications
- Distribution transformers
- Power transformers
- Wound core and stacked core builds
- Reactors and inductors
- Instrument transformers

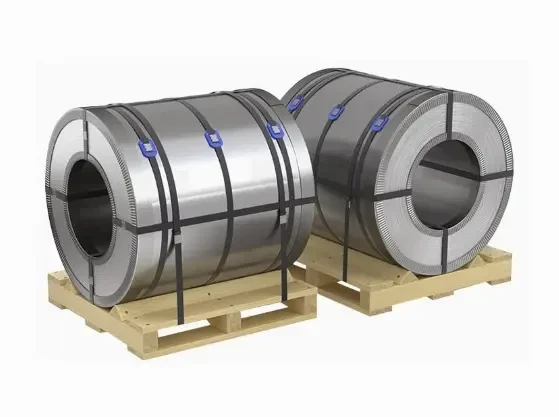

Grade 23R075
23R075 Grain-Oriented Electrical Steel
A thin, high-permeability grain-oriented grade for transformer cores with demanding no-load loss targets.
Thickness 0.23 mmView details

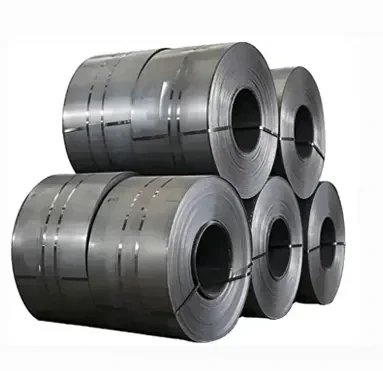

Grade 20R070
20R070 Grain-Oriented Electrical Steel
The thinnest grade in the range, for transformer cores with very demanding no-load loss targets.
Thickness 0.20 mmView details

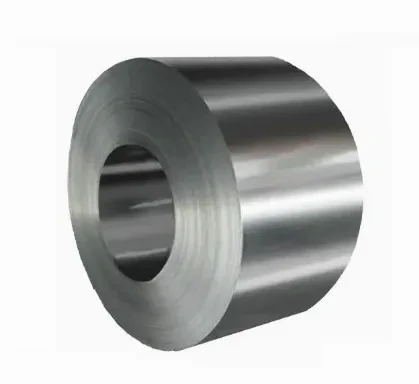

Grade 27Q085
27Q085 Grain-Oriented Electrical Steel
A thinner, low-loss grain-oriented grade for power transformer cores and high-performance reactor applications.
Thickness 0.27 mmView details

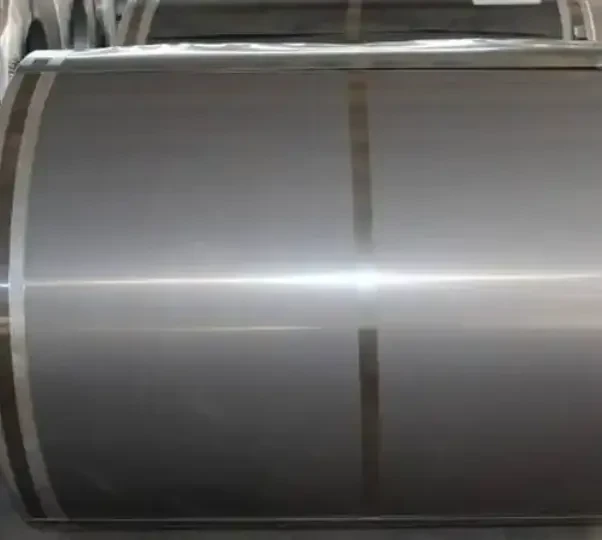

Grade 30Q120
30Q120 Grain-Oriented Electrical Steel
A conventional grain-oriented grade for distribution transformers where the loss budget allows a standard grade.
Thickness 0.30 mmView details
Grade 27Q100

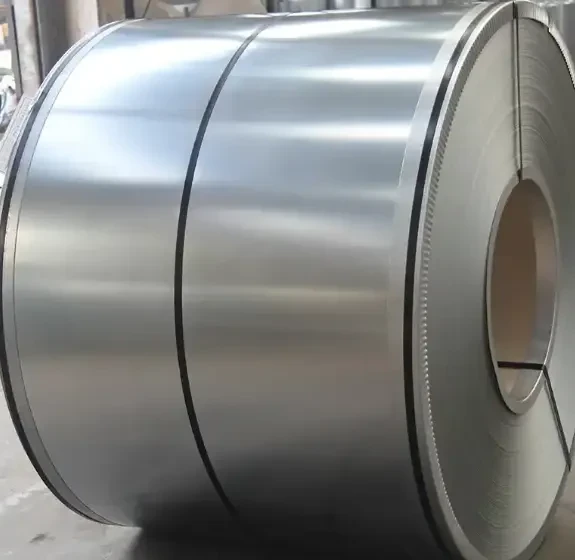

27Q100 Grain-Oriented Electrical Steel
A thin-gauge grade for transformer cores that need lower loss than 0.30 mm material at the same induction level.
Thickness 0.27 mmView details

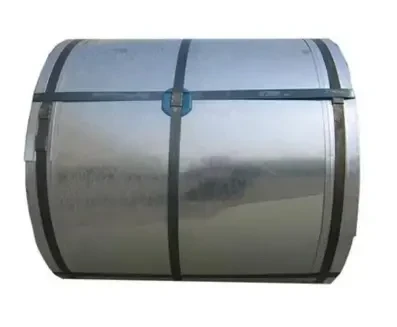

Grade 23Q090
23Q090 Grain-Oriented Electrical Steel
The thinnest grade in the range, for large power transformer cores where eddy current loss dominates the loss budget.
Thickness 0.23 mmView details
